Producing a block (internal transition)

Block production is a key process for a blockchain because it is responsible for adding new transactions to the blockchain, securing the network, and maintaining the chronological order of transactions. We have developed internal block production for the Rust node. This document is an overview of how this process works.

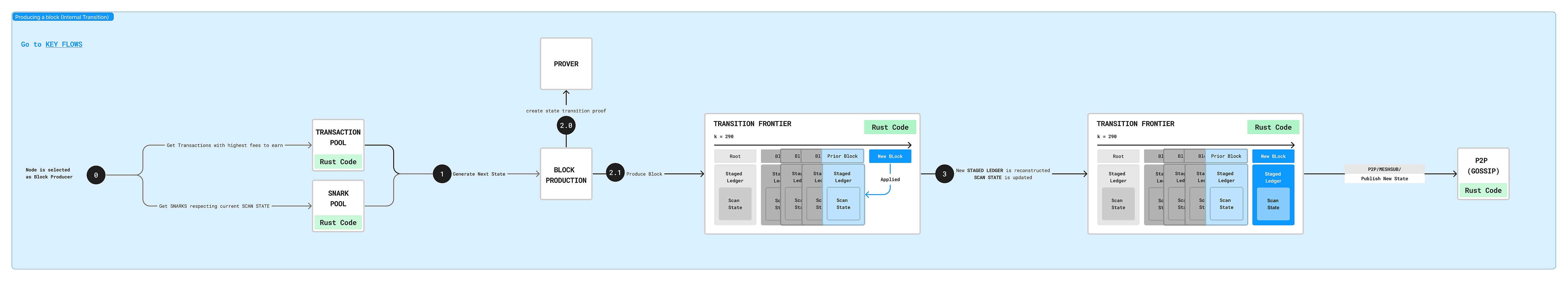

Workflow overview​

This is an overview of the internal block production workflow. Click on the picture for a higher resolution:

Block production workflow

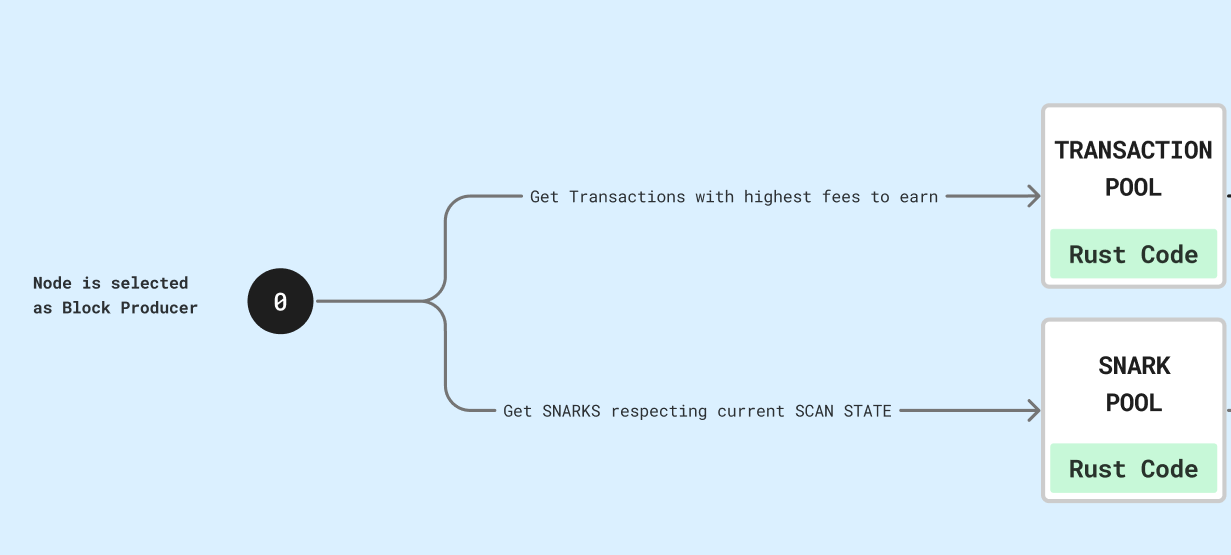

Block producer selection​

The process begins with the node getting selected as a block producer.

Block producer selection

Block production requirements​

To produce a block, it needs:

  • Transactions with which it fills a block. Transactions are charged a certain fee - transactions with the highest fees are automatically selected by a producer (the fees are rewarded to the producer).
  • SNARKs for transactions, however, due to the way the scan state operates, these SNARKs are usually not for the corresponding transactions included in the block.

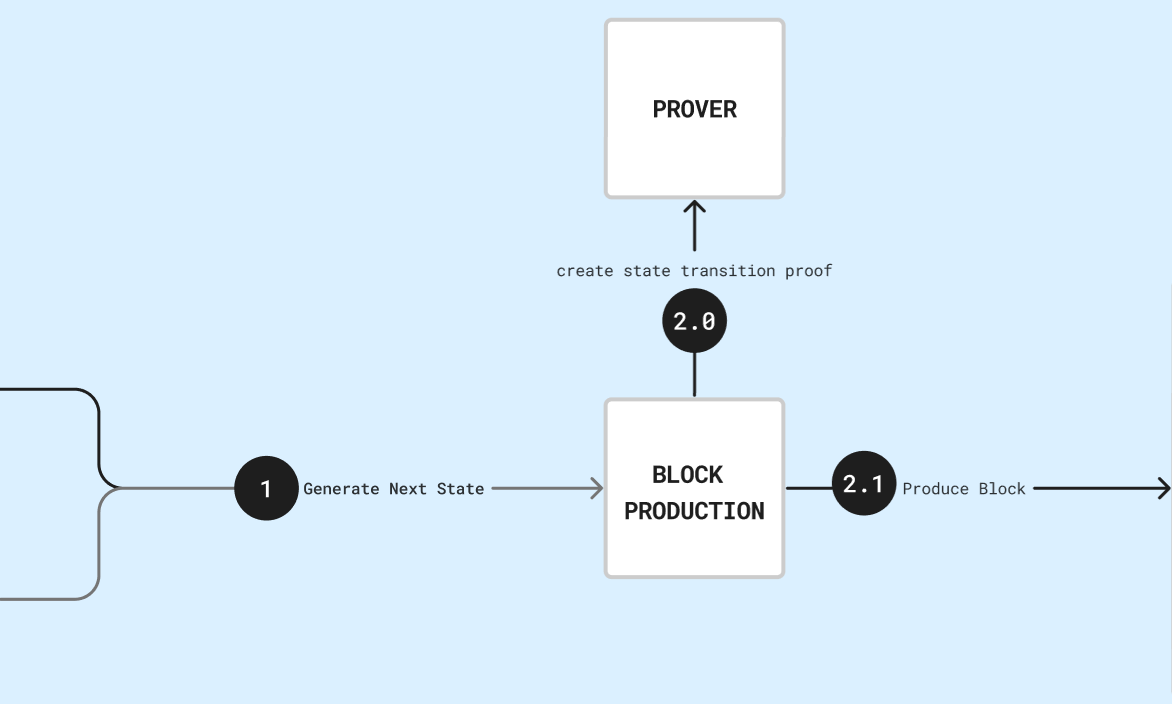

State transition​

The combination of new transactions and SNARKs results in a new state for the Mina blockchain. This is known as a state transition, which is why blocks are sometimes known as transitions in Mina.

State transition

Prover verification​

Before this new state can be applied, it must be checked by a prover. The block's SNARK proof is sent to a prover, who checks the SNARK proof. This process is performed in OCaml. Once checked, the block can be produced.

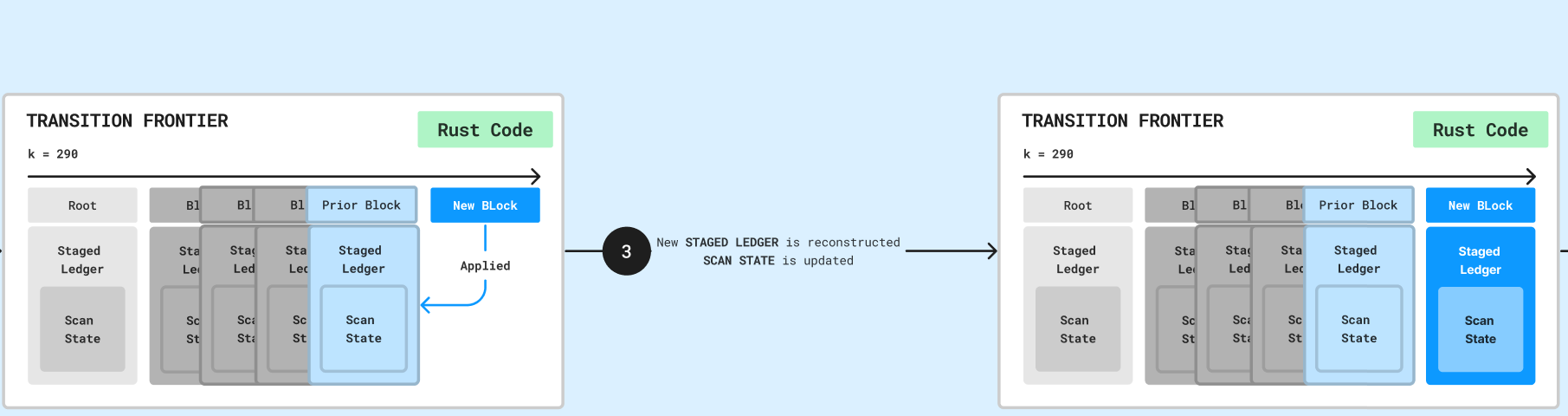

Ledger application​

A new block is added to the head of the chain. The block is applied to the staged ledger, but not yet to the SNARKed ledger. For that, it needs to have its SNARK proof checked.

Ledger application

Network broadcast​

The block is applied to the SNARKed ledger, and a new state is then created, which is broadcast across the PubSub P2P network.

Network broadcast
